Vacuum Encapsulated CCFL Inverters
These CCFL inverters are fully vacuum-encapsulated – a design unique to ERG – to provide maximum reliability and ensure reliable CCF lamp ignition and prevent cross-talk. They’re the ideal solution for applications where compact size, high efficiency and absolute reliability are critical.
- Maximum Resistance to Shock, Vibration & Humidity
- Standard Units for Wide Range of Displays & Applications
- Output Power from 5W to 0W
- External Control or On-Board PWM Dimming
- Low Profile (<11mm high) Versions Available
- PC-Mountable Versions Available
- Single- to Multi-Lamp Versions
- Warranties from 1 Year to Lifetime

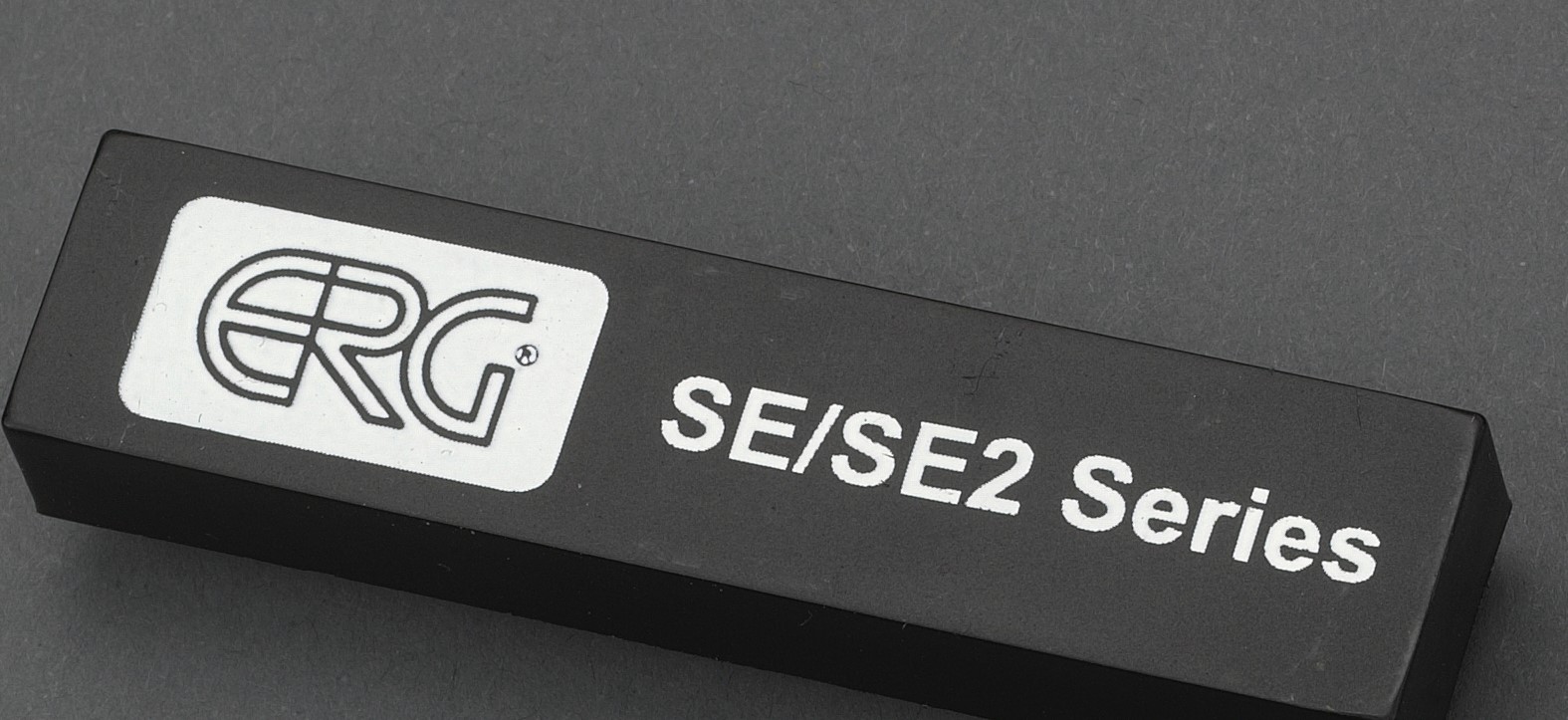

SE2 Series
- 2 Lamps
- High Efficiency
- PCB Mountable
- External PWM Dimming
- Less than 0.420 Inches High
- Up to 5 Watts of Output Power
- Fully Encapsulated for Resistance to Shock, Vibration and Humidity
SE Series
- High Efficiency
- PCB Mountable
- External PWM Dimming
- Less than .420 Inches High
- Up to 5 Watts of Output Power
- Fully Encapsulated for Resistance to Shock, Vibration and Humidity
E200II Series
- High Efficiency
- 0.60 inches High
- PCB Mountable
- Fully Encapsulated
- One or Two CCF Lamps

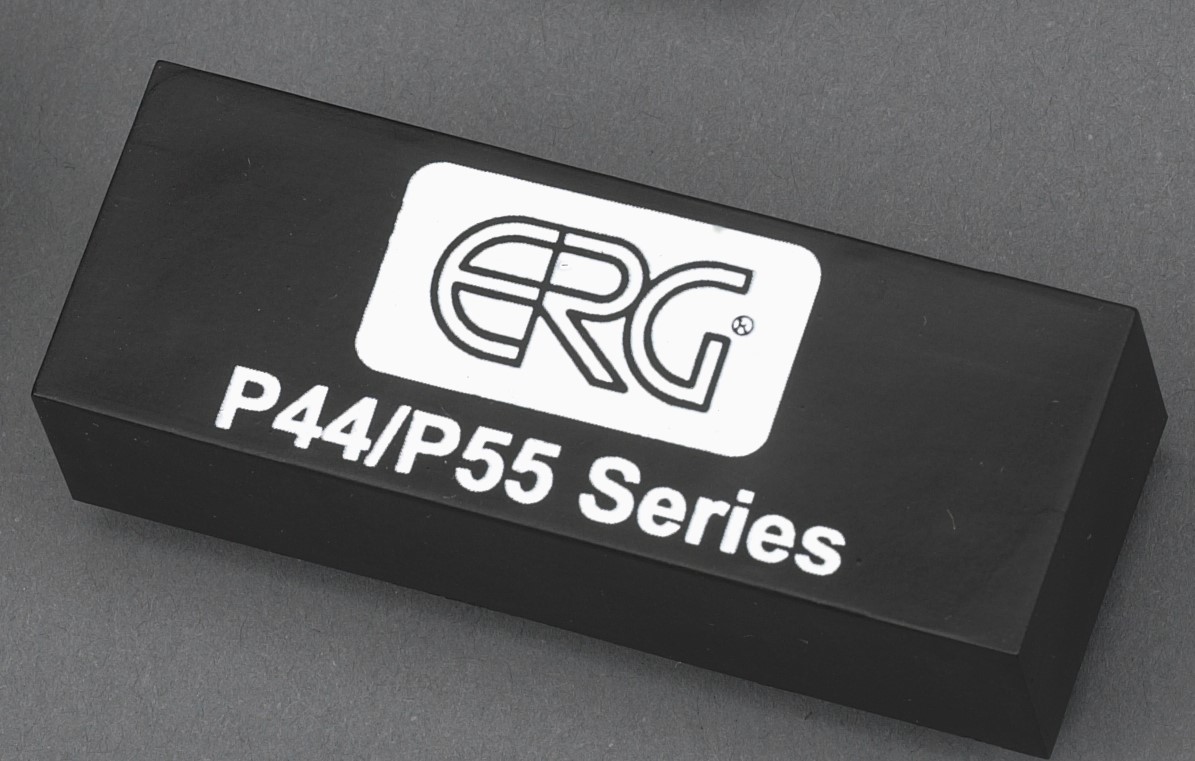

P44 Series
- PCB Mountable
- Fully Encapsulated
- Up to 4 CCF Lamps
- Up to 15 Watts of Output Power
- External Control and PWM Dimming
- Standard Units for a Wide Range of Displays and Applications
P44W Series
- PCB Mountable
- Starting Voltage up to 3000 Vrms
- Boost Current Operation for Cold Starts
- For High Pressure Automotive Type Lamps
- Fully Encapsulated for Resistance to Shock, Vibration and Humidity
- Operating Range of -30 to +85 C
- External Control and PWM Dimming

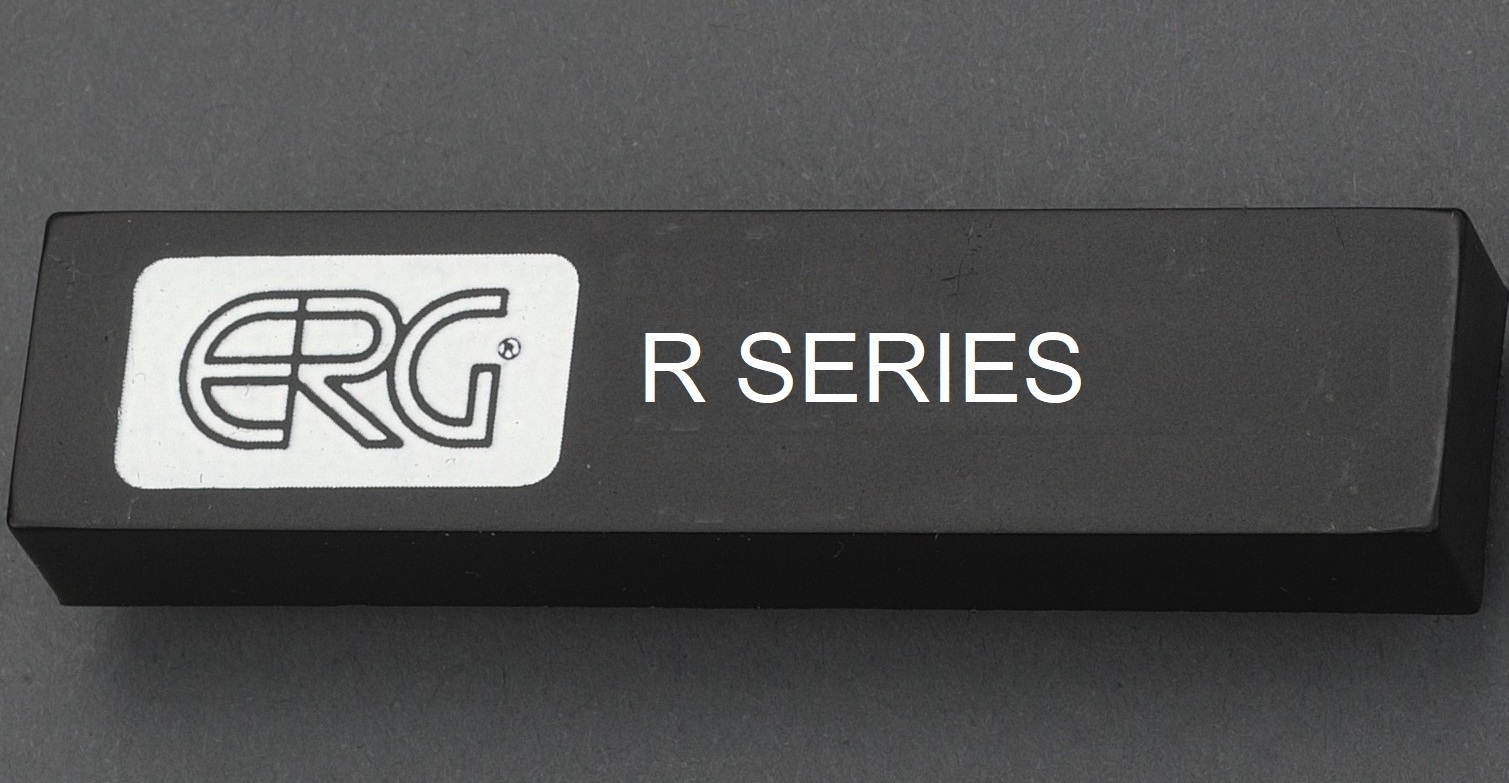

R Series
- High Efficiency
- 0.70 inches High
- Up to 10 CCF Lamps
- Up to 30 Watts of Output Power
- 85 Degrees C Case Temperature
- Stable Dimming to Low Brightness Levels
